SOIC8 SOP8 to DIP8 IC Programmer Socket Adapter 4pcs by QIYQTIG

Description

Product Overview

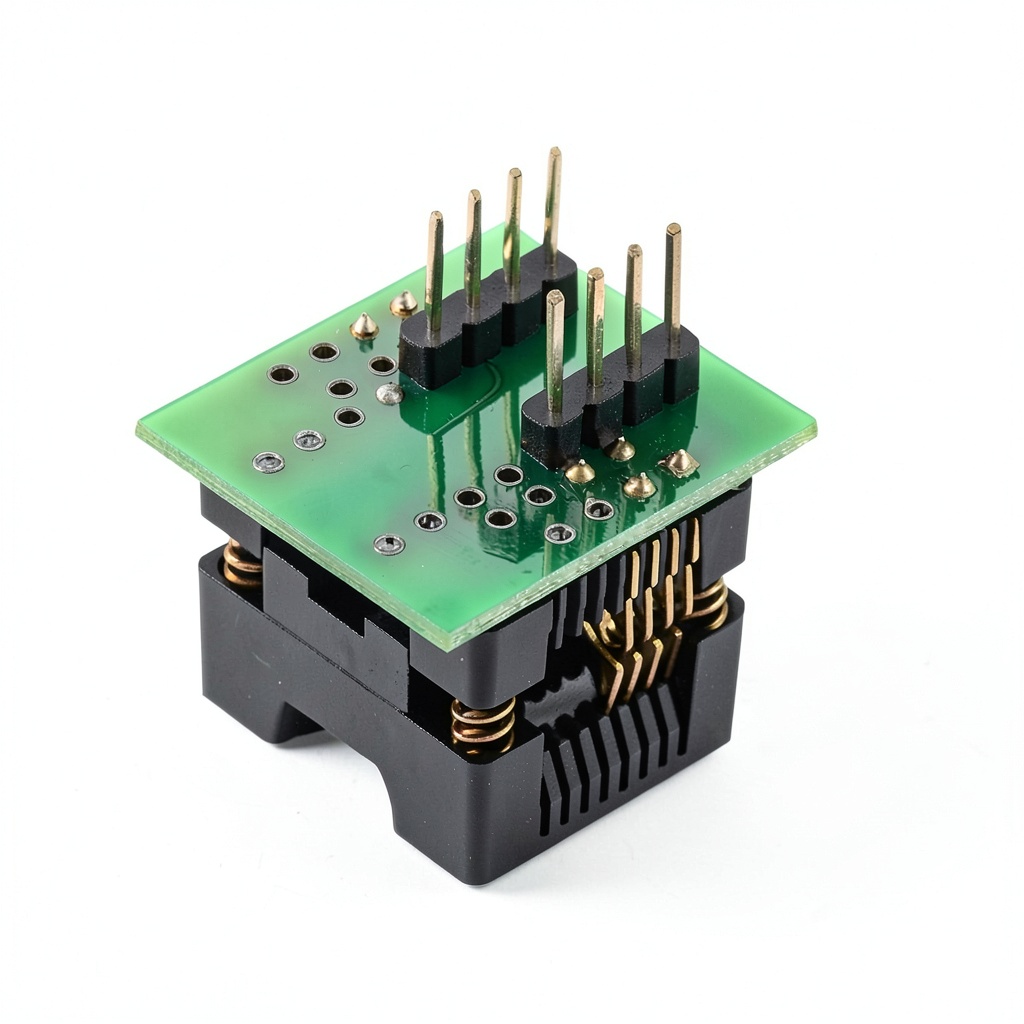

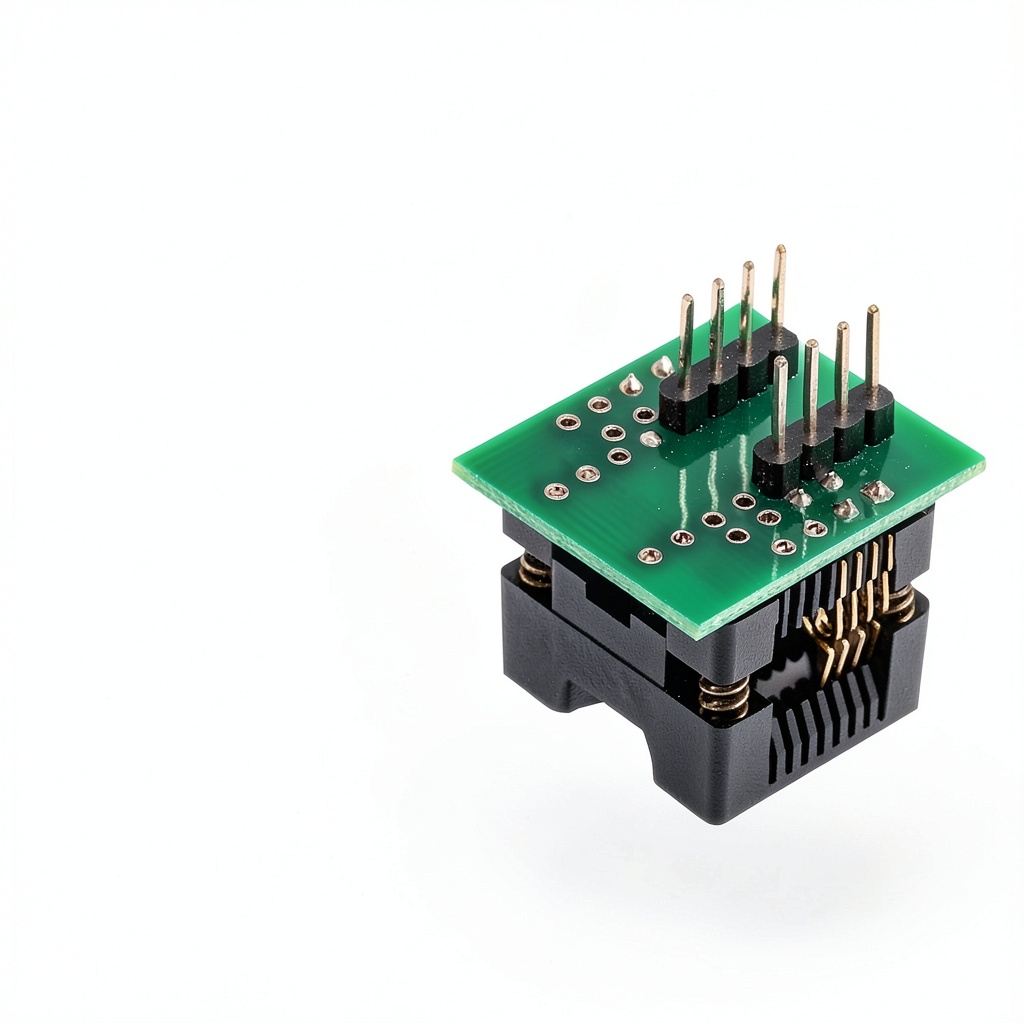

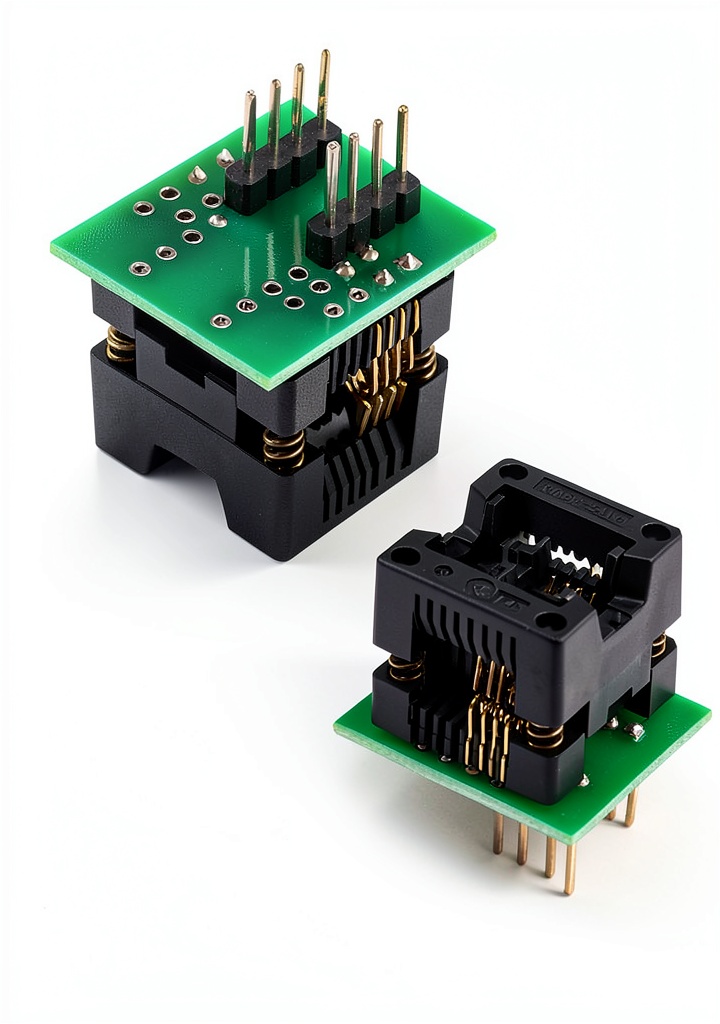

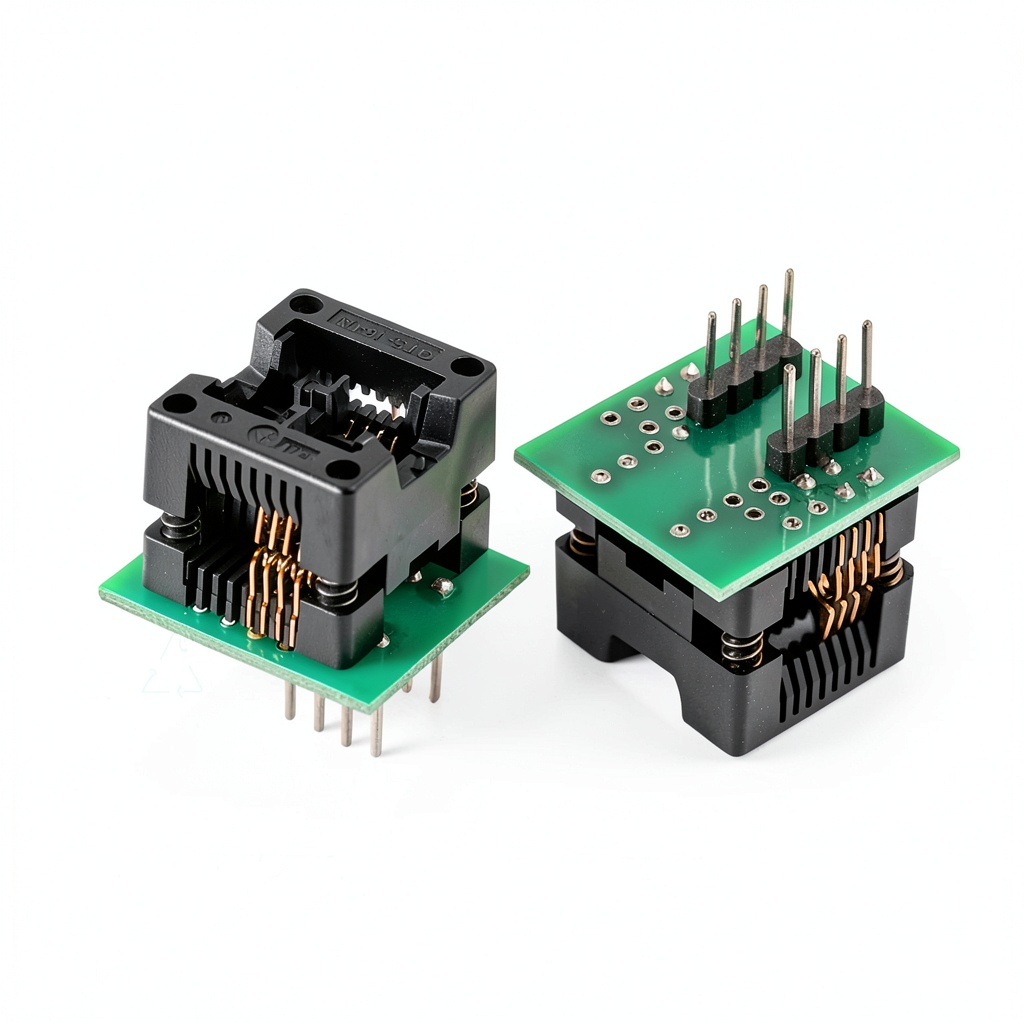

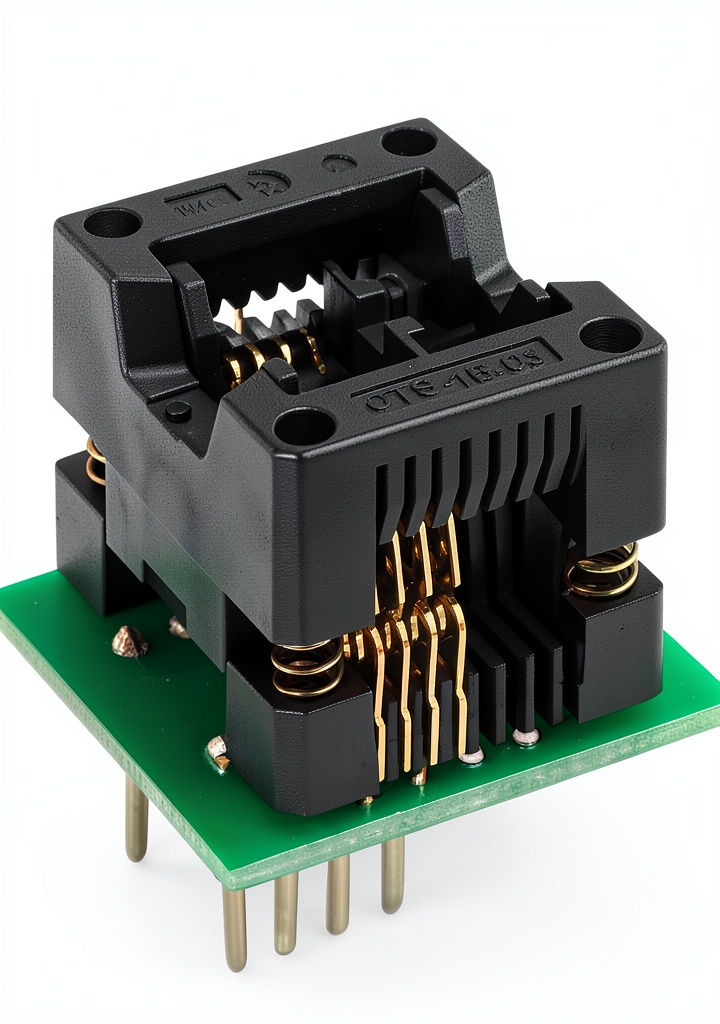

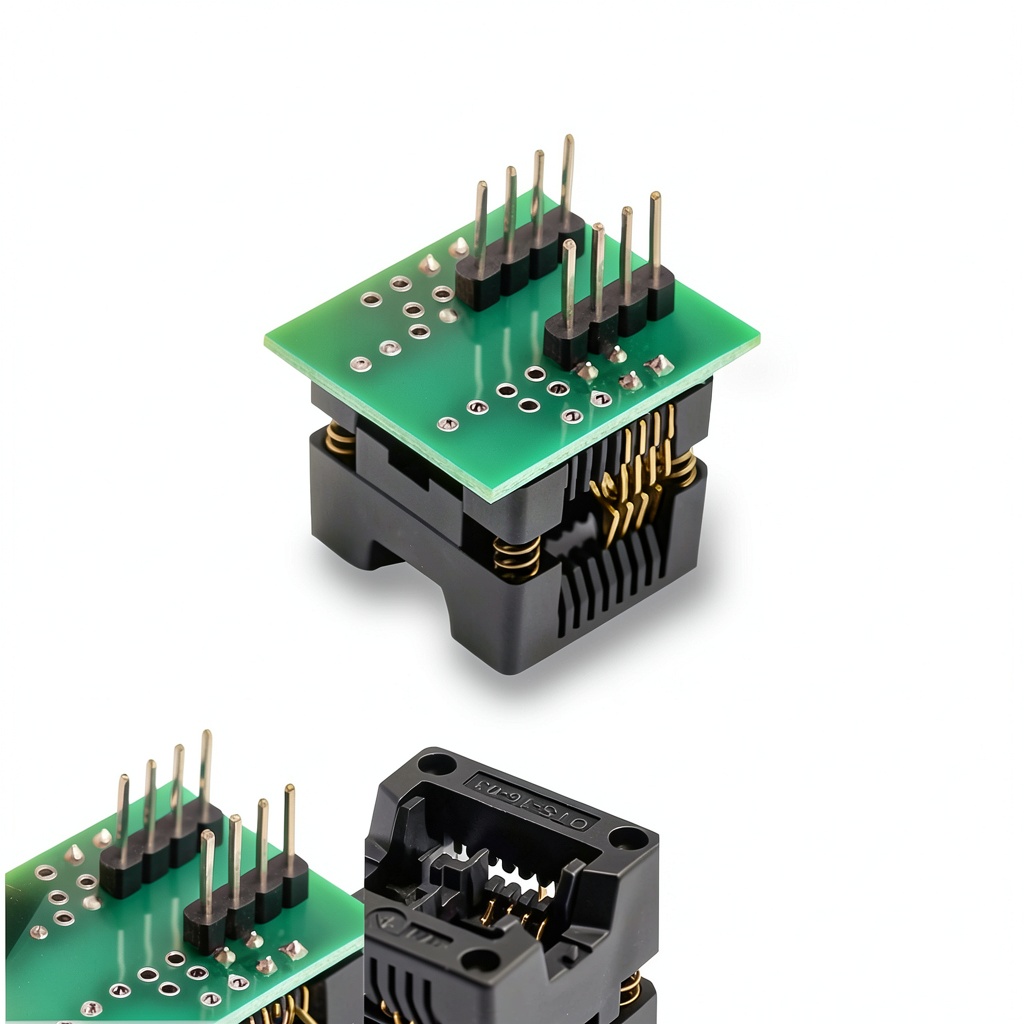

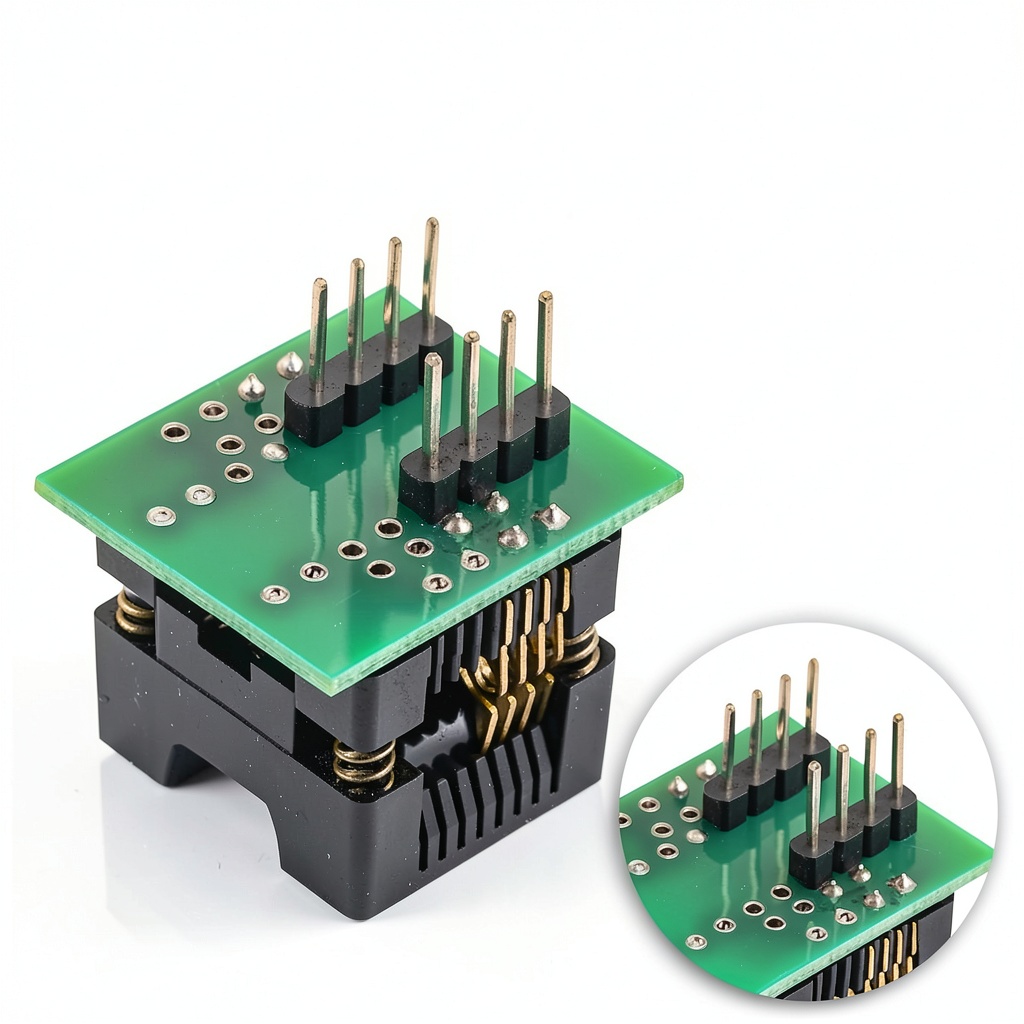

The QIYQTIG 4‑piece SOIC8 SOP8 to DIP8 adapter module is engineered to simplify the programming and testing of eight‑pin surface‑mount ICs. Each adapter measures a compact 0.3 × 0.3 × 0.3 inches and weighs only 0.23 oz, making it easy to handle and store. Constructed from high‑temperature resistant phenolic resin with gold‑plated contacts, the sockets provide a low‑resistance path and excellent durability for repeated insertion cycles. The module supports a wide range of chip families, including 24CXX, 93CXX, and 25 series EEPROMs, as well as other SOP8‑type devices. The 50 mil pin pitch aligns perfectly with standard DIP8 programmers, eliminating the need for soldering or custom fixtures. The package includes four identical adapters, allowing simultaneous work on multiple devices or quick replacement of worn sockets. Compatibility extends to popular programmer series such as ALL‑11, ALL‑100GANG, LT‑48, Super PRO, and TOP, ensuring seamless integration into existing test rigs. The product’s model number 1340706‑002‑1648518131 and ASIN B0CF249BRF provide traceability for inventory management.

Usage

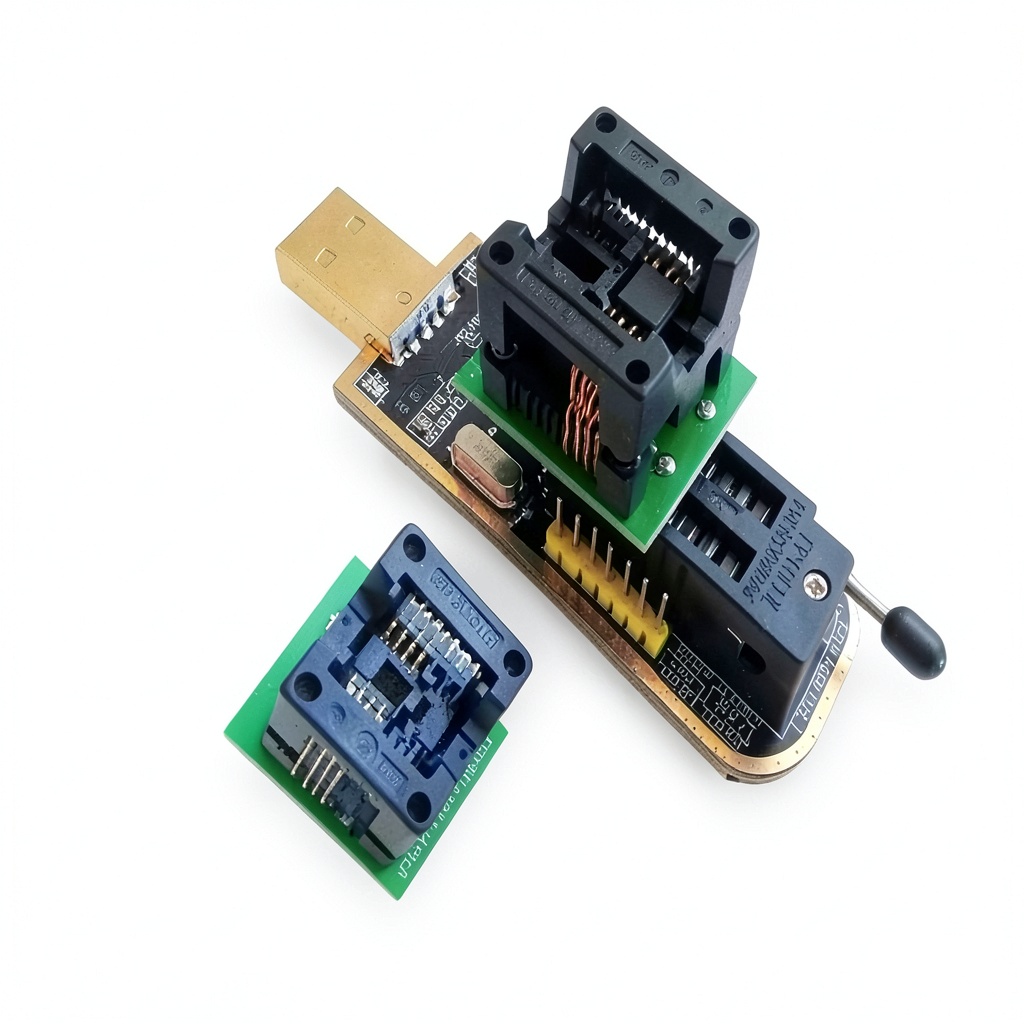

Designed for both professional engineers and electronics hobbyists, this adapter excels in a variety of environments. In a laboratory setting, technicians can quickly mount an SOP8 chip onto the adapter and insert it into a standard DIP8 programmer for in‑circuit verification, firmware updates, or data extraction. Field service engineers benefit from the solder‑free approach when diagnosing equipment on‑site, as the adapter reduces turnaround time and minimizes the risk of damaging delicate components. Educational institutions use the adapters in classroom labs to demonstrate IC programming concepts without requiring expensive reflow equipment. The compact footprint allows the adapters to be incorporated into portable test kits, making them ideal for troubleshooting portable devices, IoT modules, and consumer electronics. Whether you are developing prototypes, performing batch testing, or repairing legacy hardware, the adapter provides a reliable, repeatable connection method that enhances productivity.

Why Choose Us

QIYQTIG is a trusted manufacturer known for delivering high‑quality electronic components that meet rigorous industry standards. Each adapter undergoes a multi‑stage quality assurance process, including dimensional inspection, contact resistance testing, and thermal cycling, to guarantee consistent performance across thousands of insertion cycles. The use of gold‑plated pins reduces oxidation and ensures stable electrical contact, which is critical for accurate programming results. Our adapters are backed by a responsive customer support team that offers technical assistance, replacement parts, and detailed documentation to help you get the most out of your purchase. With a focus on durability, precision engineering, and user‑centric design, QIYQTIG provides a product that not only meets but exceeds the expectations of demanding applications. The adapters are also environmentally compliant, adhering to RoHS guidelines, which reflects our commitment to sustainable manufacturing practices.

Key Features

• Compact 0.3 inch square size fits easily on any workbench or portable kit
• Gold‑plated contacts deliver low resistance and long‑lasting reliability
• Supports a broad range of SOP8 chips, including 24CXX, 93CXX, and 25 series EEPROMs
• Compatible with major programmer series such as ALL‑11, LT‑48, and Super PRO
• Four‑piece kit provides flexibility for multiple simultaneous projects
• RoHS‑compliant construction ensures environmentally responsible usage
• Dedicated technical support and easy replacement policy for peace of mind

FAQ

Can I use this adapter with any DIP8 programmer?

Yes, the adapter’s 50 mil pin pitch matches the standard DIP8 footprint, allowing it to work with virtually any DIP8 programmer that accepts 8‑pin ICs.

Is the adapter suitable for high‑frequency applications?

While the adapter is optimized for programming and testing low‑to‑moderate speed EEPROMs, its gold‑plated contacts provide adequate performance for most standard‑frequency tasks. For very high‑frequency signals, a dedicated high‑speed socket is recommended.

How many insertion cycles can the adapter withstand?

Each socket is rated for over 1,000 insertion/removal cycles without significant degradation in contact resistance, thanks to the durable phenolic resin body and gold plating.

Do you offer replacement parts if a socket becomes damaged?

Absolutely. QIYQTIG provides a straightforward replacement service. Contact our support team with the model number, and we will ship a replacement adapter promptly.

What is the warranty period for this product?

The adapter comes with a one‑year limited warranty covering manufacturing defects. Technical support is available throughout the warranty period to assist with any issues.
